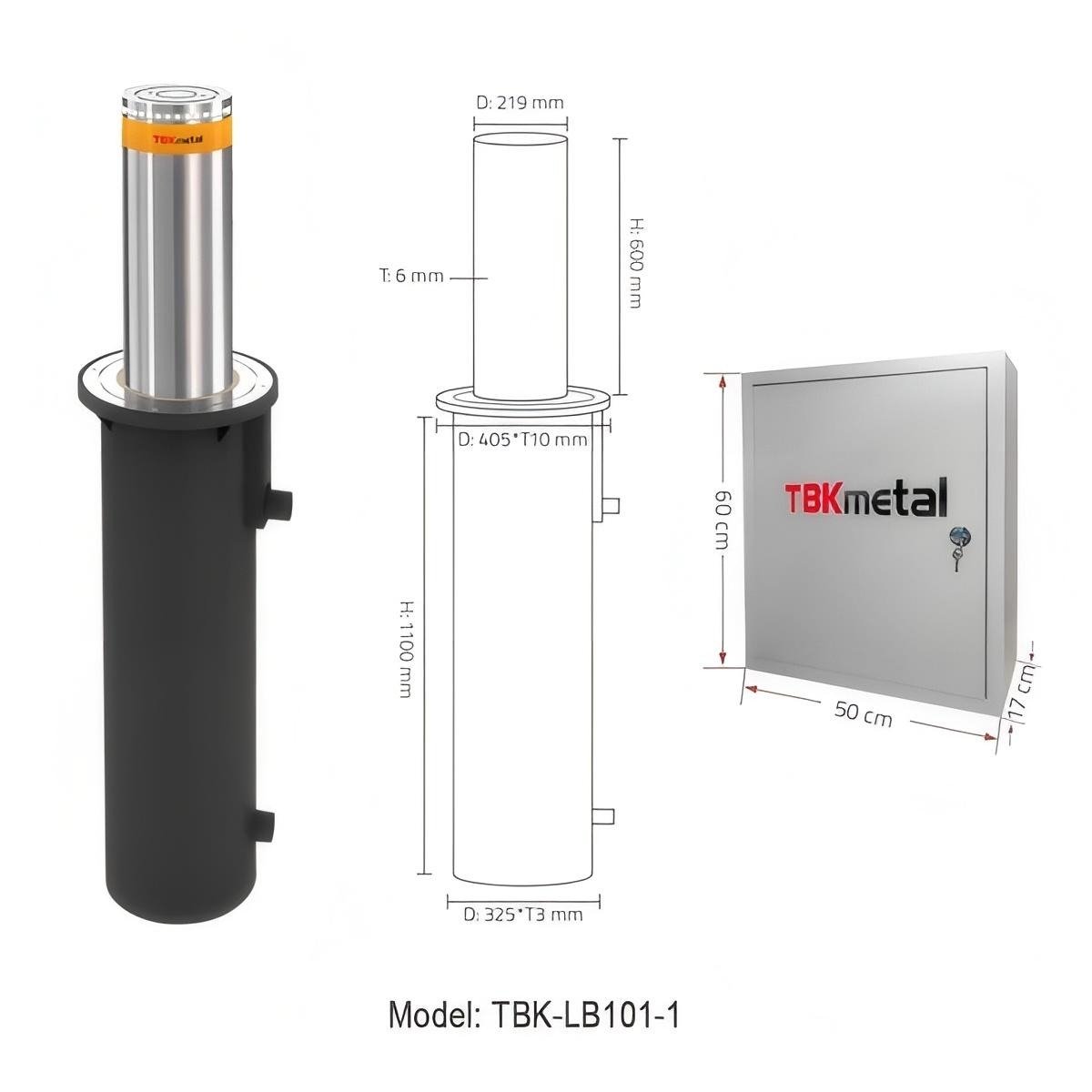

Model: TBK-LB101-1
| Model No. | TBK-LB101-1 |
| Material | 316 stainless steel |
| Wall Thickness | 6 mm |
| Blocking Height | 600 mm |
| Blocking Diameter | 219 mm |
| Flange Size | D405*10 mm |
| Embedded Sleeve Size | D325*T3 mm |
| Embedded Sleeve Height | 1000 mm |
| Weight | 100 kg |
| Rising / Fall Time | 4S / 3S |
| Input Voltage | single phase 220V +5%, 50HZ,or 110 V |
| Power | 370W |
| Protection Level(waterproof) | IP68 |
| Operation Temperature | -45°℃ to 75℃ |
| Control way | remote control |
| * Other sizes, materials, and control way are available | |

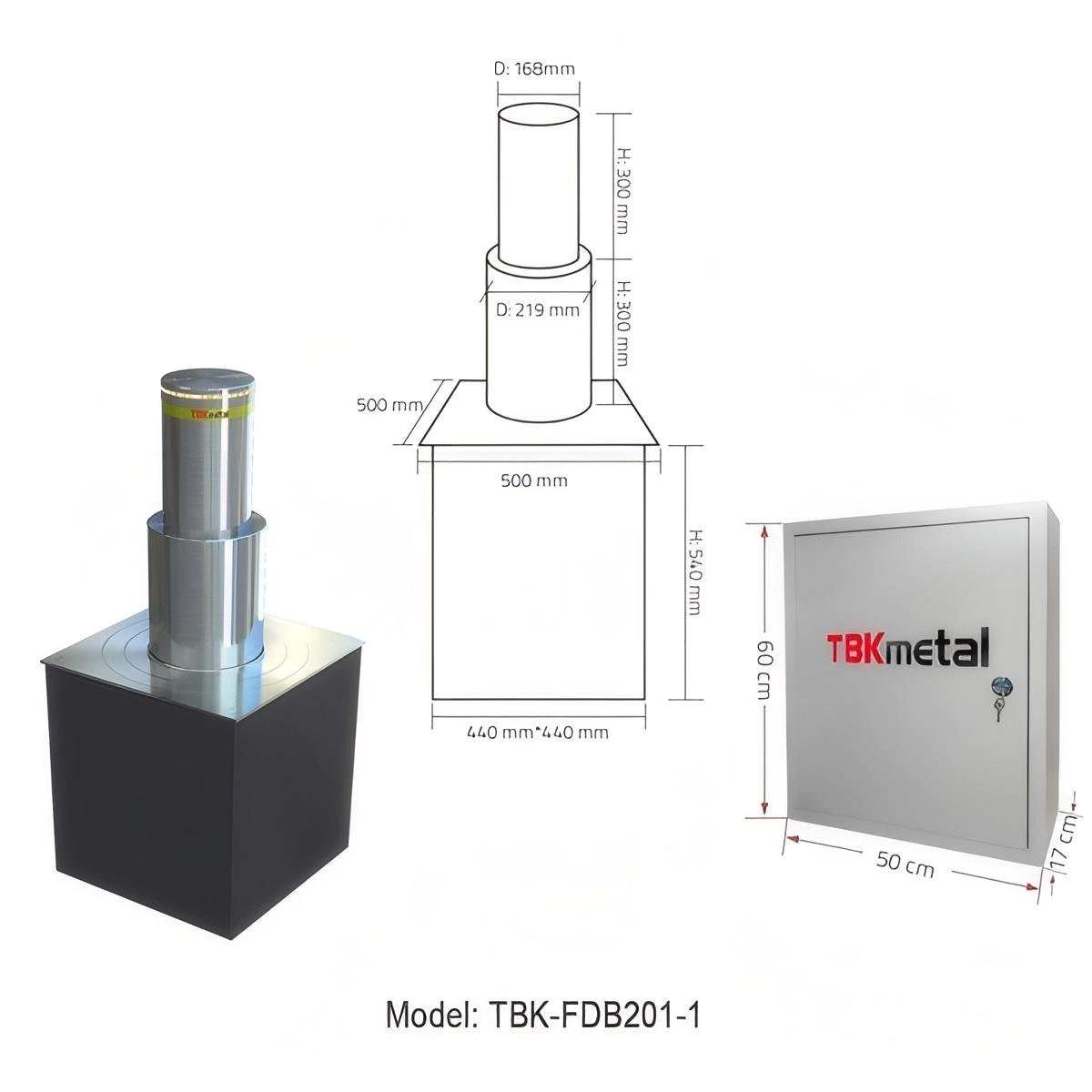

Model: TBK-FDB201-1
| Modal No. | TBK-FDB201-1 |
| Material | G316 stainless steel |
| Wall Thickness: | 6 mm |
| Blocking Height | 600 mm (300 mm+300 mm) |
| Blocking Diameter | 219 mm,168 mm |
| Flange Size | L500*W500*T10 mm |
| Embedded Sleeve Size | L440*W440*T3 mm |
| Embedded Sleeve Height | 300 mm |
| Weight | 93 kg |
| Rising / Fall Time | 4S / 3S |
| Input Voltage | single phase 220 V+5%, 50HZ |
| Power | 370W |
| Protection Level(waterproof) | IP68 |
| Operation Temperature | -45℃ to 75 ℃ |
| Control way | remote control (phone app available) |
| * Other size, material , control way are available | |

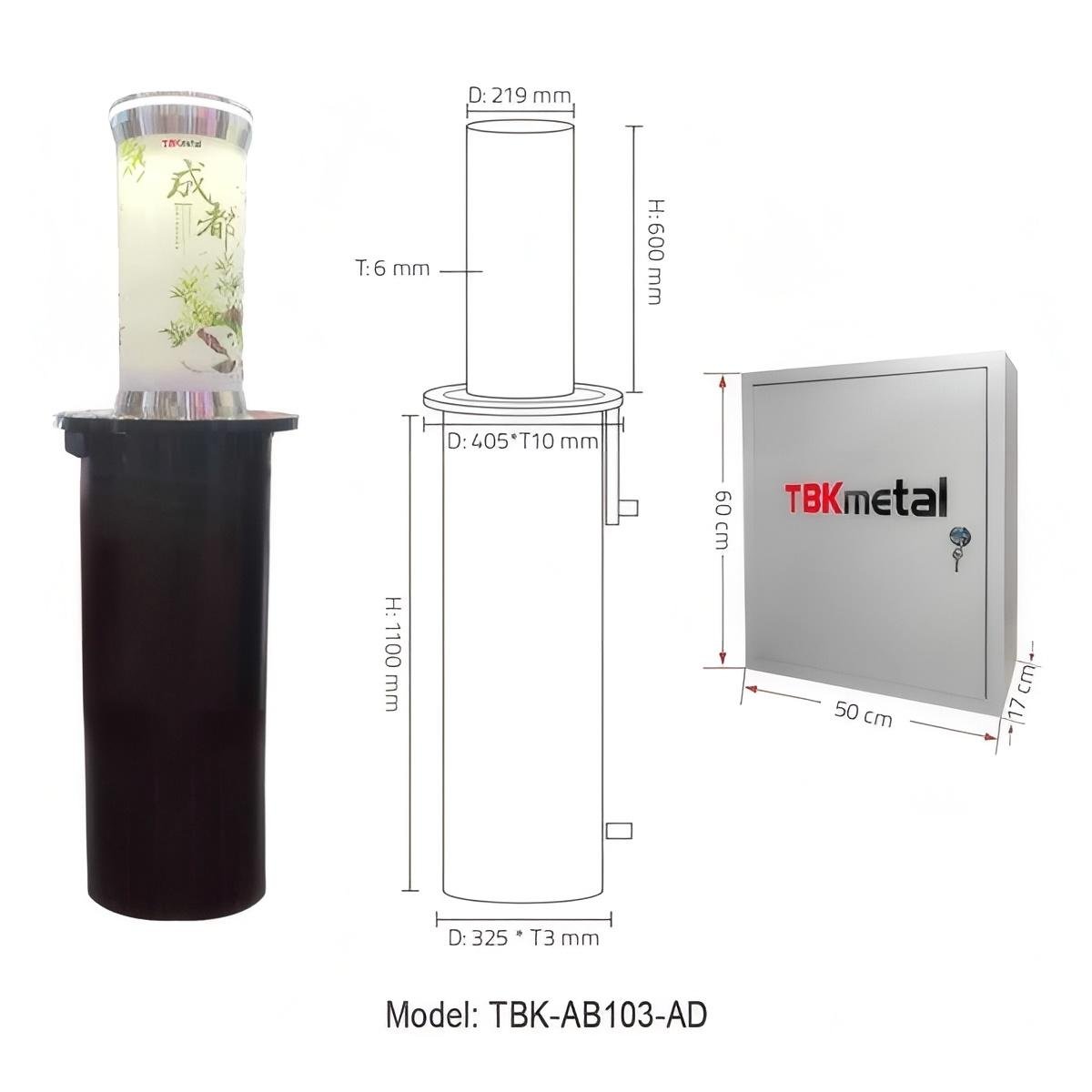

Model: TBK-AB103-AD
| Model No. | TBK-AB103-AD |
| Material | stainless steel G316+ acrylic |
| Wall Thickness: | 6 mm |
| Blocking Height | 600 mm |
| Blocking Diameter | 219 mm |
| Flange Size | D405*10 mm |
| Embedded Sleeve Size | D325*T3 mm |
| Embedded Sleeve Height | 1100 mm |
| Weight | 100 kg |
| Rising / Fall Time | 4S / 3S |
| Input Voltage | single phase 220 V +5%, 50 HZ, or 110 V |
| Power | 370W |
| Protection Level(waterproof) | IP68 |
| Operation Temperature | -45°℃ to 75℃ |
| Control way | remote control (phone app available) |
| * Custom options are available for logo, dimensions, and materials, and advertising can be incorporated as needed. | |
Overview of
Automatic Retractable Bollards
The automatic retractable bollards’ combination of motorized operation and sturdy structural protection allows for a controlled access to the vehicles, effective traffic control, and reliable perimeter security in a variety of architecture settings.
Sustainable Stainless Steel
for Electric Retractable Bollards
Efficient use, long service life, recycling and responsible manufacturing are all features of stainless steel that contribute to sustainable electric retractable bollard systems, helping to reduce the amount of resources consumed over time.

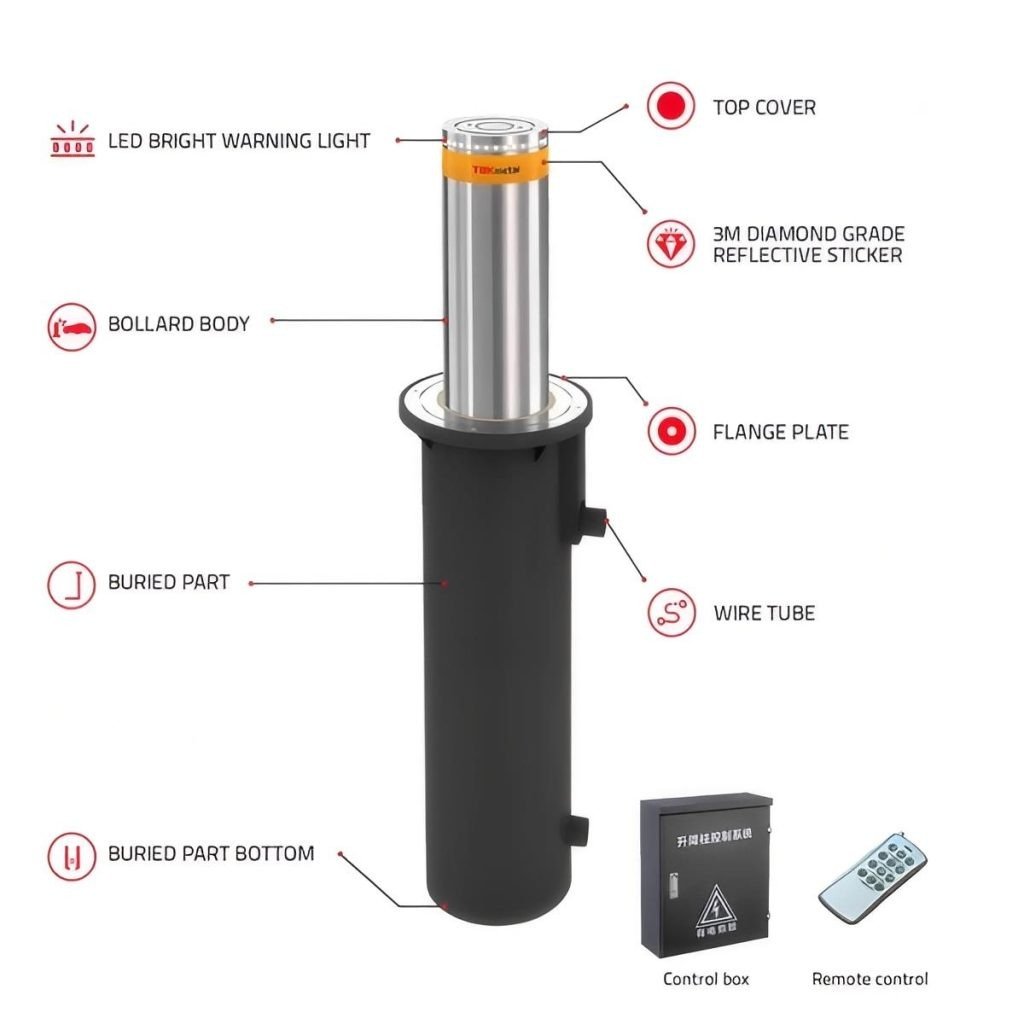

Components & Functions
Automatic retractable bollard systems are engineered to provide efficient and effective vehicle access control using coordinated structural posts, electric drives, control units, sensors and foundations.
Commercial Entrances – Automatic retractable bollards control authorised vehicle entry at commercial doors ensuring secure, well organised and professional arrival areas in an efficient and cost-effective manner.
Government Facilities – Automatic retracting bollards are effective for controlling vehicle access, enhancing perimeter security, and meeting restricted access management needs at government facilities.
Parking Areas – Today, parking areas are equipped with automatic retractable bollards to control vehicle movement, deter unnecessary parking, and ensure efficient and secure use of the designated spaces.
Pedestrian Zones – In pedestrian zones, vehicles are kept out of the area by automatic retractable bollards, but can enter for deliveries and maintenance vehicles, and for emergency vehicles when needed.
Residential Developments – Automatic retractable bollards are employed for residential developments to secure entrances, control the number of vehicles on the property, and keep traffic off of private residential areas.
Industrial Sites – Automatic retractable bollards are used in industrial sites to control the movement of heavy vehicles, to protect operational zones, and to effectively manage perimeter access on site.
Retail Complexes – Automatic retractable bollards are effective in controlling access for service vehicles and pedestrian zones and are used around commercial entrances to regulate access.
Public Plazas – Overall, automatic retractable bollards are effective at controlling vehicle access, ensuring the safety of public areas, and facilitating flexible traffic configurations in public plazas.
Where Electric Automatic Bollards Are Used
Electric automatic bollards control vehicle access in a variety of commercial and public circumstances and can provide pedestrian protection, building protection, and restricted area protection.
Customization Solutions
Suitable automatic retractable bollards can be designed to fit the requirements of the site, architectural coordination, operational control, and installation conditions of various projects.
Materials & Finishes – Match and harmonise stainless steel grades, surface finishes, protective coatings, and colours with the surrounding architecture to facilitate longevity and consistency of appearance.
Dimensions & Profiles – Use customizable bollard height, diameter, wall thickness and top profile to suit project requirements, space constraints, security expectations and architectural preferences.
Control Systems – Replace the use of keys, or remote controls, access cards, keypads, and/or sensors with an automated system for convenient vehicle management and responsive entry control.
Installation Methods – Determine and design foundations depth, drainage, electrical connections and installation arrangements based on ground conditions, site layout and project requirements.
Branding & Special Designs – Coordinate Automatic Retractable Bollards for Commercial, Civic, Residential and Hospitality use by incorporating logos, custom markings, decorative elements, or specialized designs.
Project Cases
Our project cases illustrate the capabilities of automatic retractable bollards for controlled access, increased site security, and architectural coordination in commercial, public, residential, hospitality, and infrastructure projects.
Client Reviews
Our automatic retractable bollards are popular with clients due to their reliable performance, accurate tailoring, robust build and complete project support, ensuring effective control of vehicle access in a wide range of developments.
Why Choose TBK Metal
for Electric Bollards?
The global availability of stainless steel bollard solutions is ensured through advanced fabrication, high-quality materials, customization, rigorous quality control, robust manufacturing capabilities, and professional expertise.
More abut TBK Metal
Frequently Asked Questions
Q: How do electric automatic bollards work?
Q: Where should automatic retractable bollards be installed?
Q: Can electric bollards operate during power failures?
Q: How should electric bollards be maintained?
Q: What safety features can automatic retractable bollards include?
Q: Are electric bollards suitable for pedestrian areas?
Q: How are electric bollards integrated with access control?
